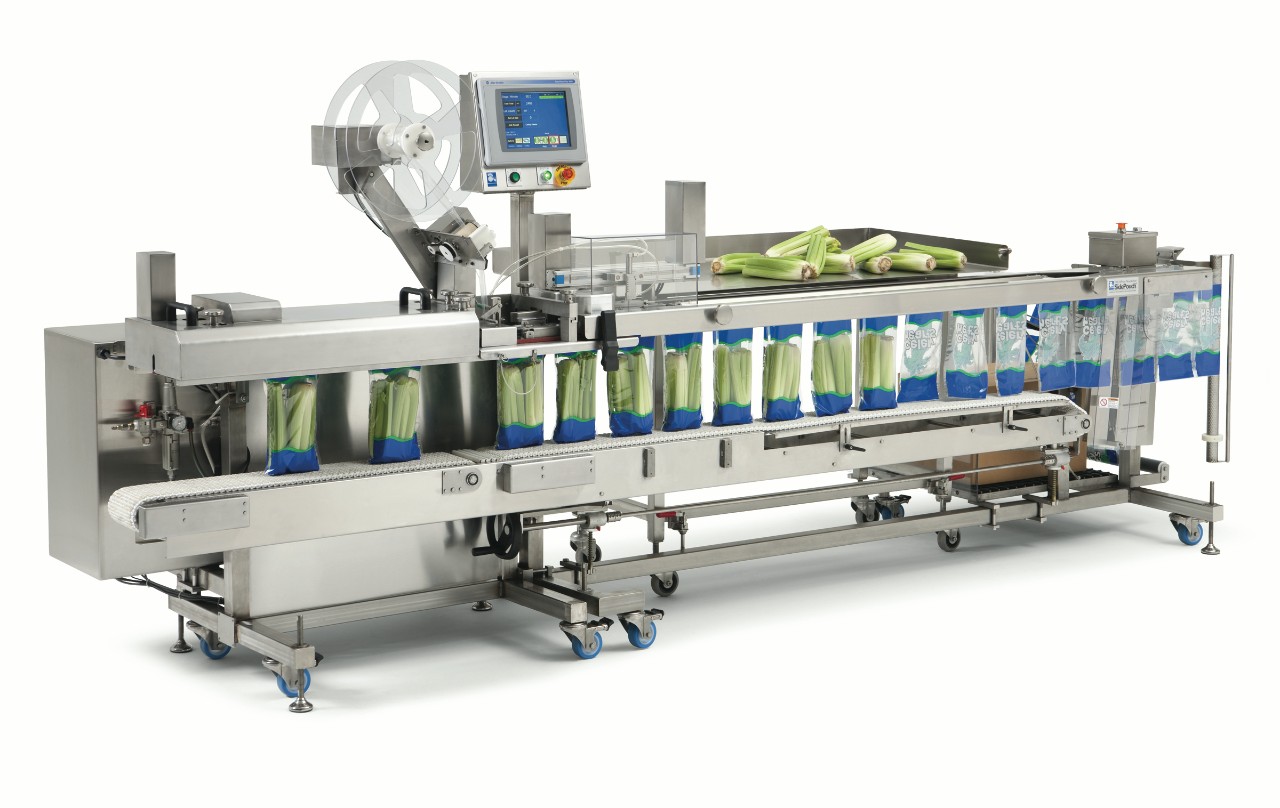

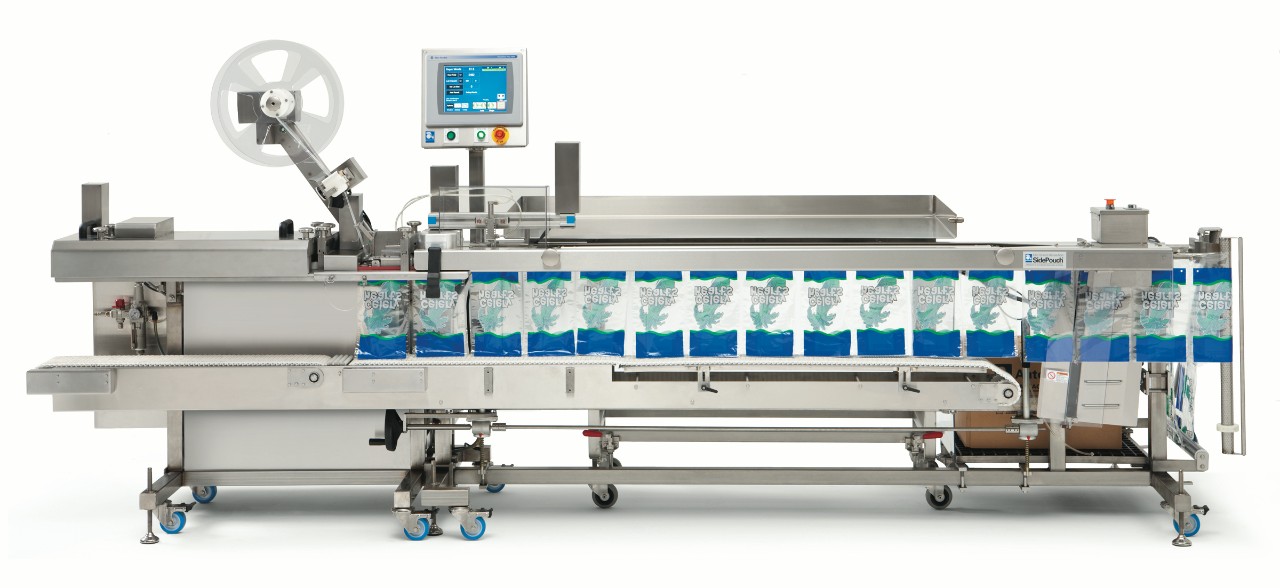

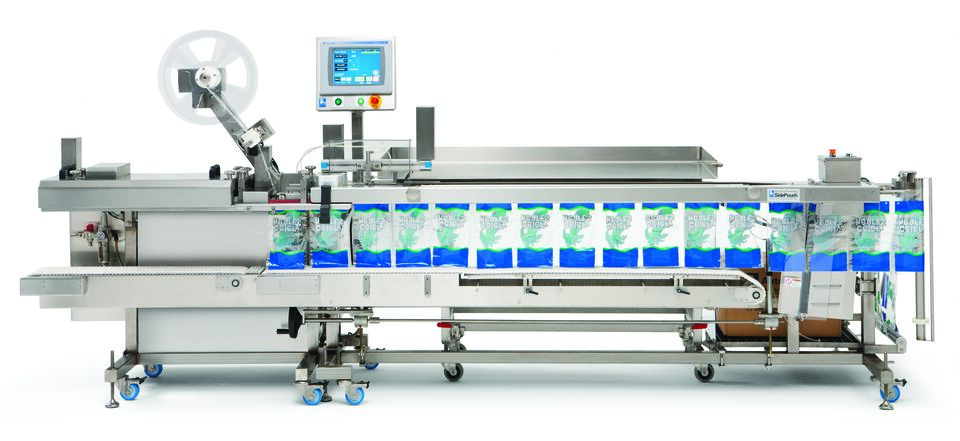

FAS SPrint Revolution SidePouch® Bagger

The FAS SPrint Revolution packaging machine brings new levels of speed and versatility to demanding, high-productivity environments that require daily wash-down procedures.


Operating at speeds up to 900 inches per minute, this state-of-the-art system offers maximum flexibility, functionality and reliability for food bag packaging.

This unique food grade packaging system presents a conveyor of pre-opened plastic bags that are staged for immediate loading. The 60" wide load area features a 6" pass-through, and tilts vertically for easy maintenance and sanitation. An innovative Coordinated Motion Seal Flattener is coupled with a band sealing system to ensure high quality, airtight, 3/8" bag seals. The SPrint SidePouch bagger operates in continuous, intermittent or batch modes, and cycles on pre-set parameters, or manually with a footswitch. This highly flexible design accommodates one or more operators or infeeds and a wide variety of products and bag sizes.

An integrated Allen-Bradley® control package, featuring Kinetix® Servo motors and drives, a CompactLogix™ L45 PLC, and a large, 10" PanelView Plus HMI, is designed for ease of operation, serviceability, integration, and overall system reliability. A simple flash card programs all of the components. The AutoTouch Control Software displays real time productivity data and provides easy access to job storage, job recall and on-board system diagnostics.

System-matched SidePouch plastic poly bags provide optimum performance, and offer a variety of special features, such as reclosable zipper bags, gussets, reinforced headers, tamper-evident perforations and more. SidePouch bags are pre-made and fan-folded in a box, eliminating the need for costly machine modifications to utilize their value-added features.

These bags can be pre-printed in up to 10-colors with high-resolution graphics for unique, attractive food packaging with a competitive edge. In addition, an AL 3000P stand-alone thermal printer or third-party printer can be easily integrated to print additional graphics, text and barcodes directly on the bag, eliminating the need for a labeling system.

Features and Benefits

  • Operates at speeds up to 900 inches per minute (bags per minute determined by bag size)
  • State-of-the-art components and operator-friendly AutoTouch Control Software enhance system reliability and simplify the user experience
  • Accommodates a wide variety of loading methods, automatic infeeds, inline imprinters, products and bag sizes
  • Advanced sealing system ensures consistent, high-quality, airtight bag seals
  • Corrosion-resistant, stainless steel construction
  • Mounted on casters for mobility
  • System-matched SPrint SidePouch bags offer special features, such as reclosable zippers, resealable flaps, tamper-evident perforations and more
  • Operator-adjustable pass-through accommodates various product sizes

Specifications

This is a table

Weight:

1134 lbs. (514 kg)

Electrical:

110/230 VAC; 50/60 Hz; 12/6 Amps

Air Feed:

5 CFM/80 psi of clean, dry air

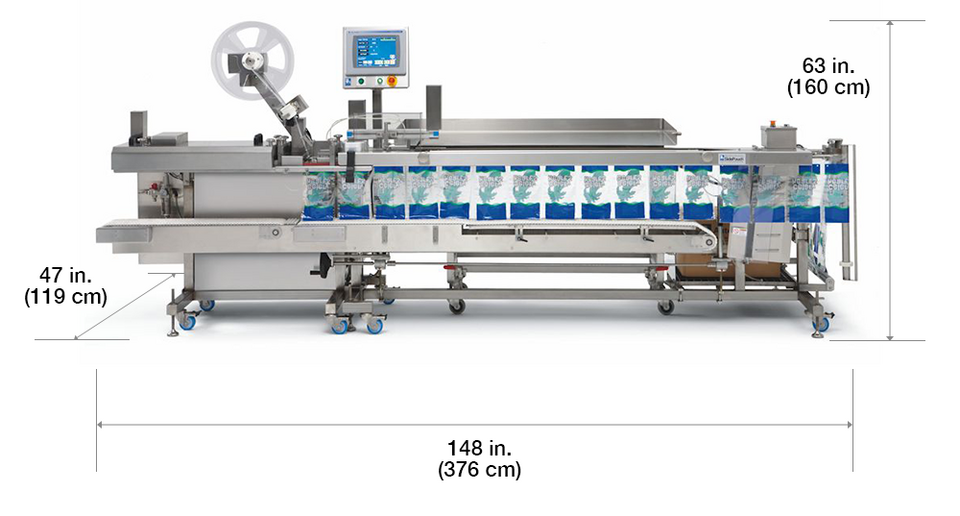

Height:

63 in. (160 cm)

Depth:

47 in. (119 cm)

Length:

148 in. (376 cm)

177 in. (450 cm) with inline imprinter and support conveyor options

Pass-Through:

Up to 6 in.

Bag Thickness:

1.5 to 4.0 mil

Bag Sizes:

W 2 to 24 in. L 3 to 18.75 in.

Approvals:

USDA Accepted

AIB Inspected facilities
