AUTOBAG^® Brand 650™ Horizontal Wide Bagging System

The AUTOBAG^® 650 Horizontal is an automatic filling and sealing machine capable of running 400 mm wide bags, a large load area for order prep and bulk product queuing, and a compact design that minimises floor space. Developed for reliability, flexibility and optimising packaging throughput, this system delivers maximum uptime while lowering total package cost.

When used with genuine AUTOBAG^® pre-opened bags-on-a-roll or bags-in-a-box and AutoLabel™ Thermal Transfer Ribbon, the AUTOBAG^® 650 Horizontal ushers in the next evolution of high-quality, reliable and flexible wide bag packaging, backed by the industry’s most comprehensive technical and field service network.

Features and Benefits

Horizontal configuration ensures label-up orientation every time
60 cm conveyor boasts a generous open-space design, enabling unrestricted access and effortless transition onto secondary conveyance systems
Next-bag-out thermal transfer printing ensures accuracy in applications requiring frequent label changeovers
Simple machine design minimises operator training requirements - perfect for high-turnover, seasonal labour

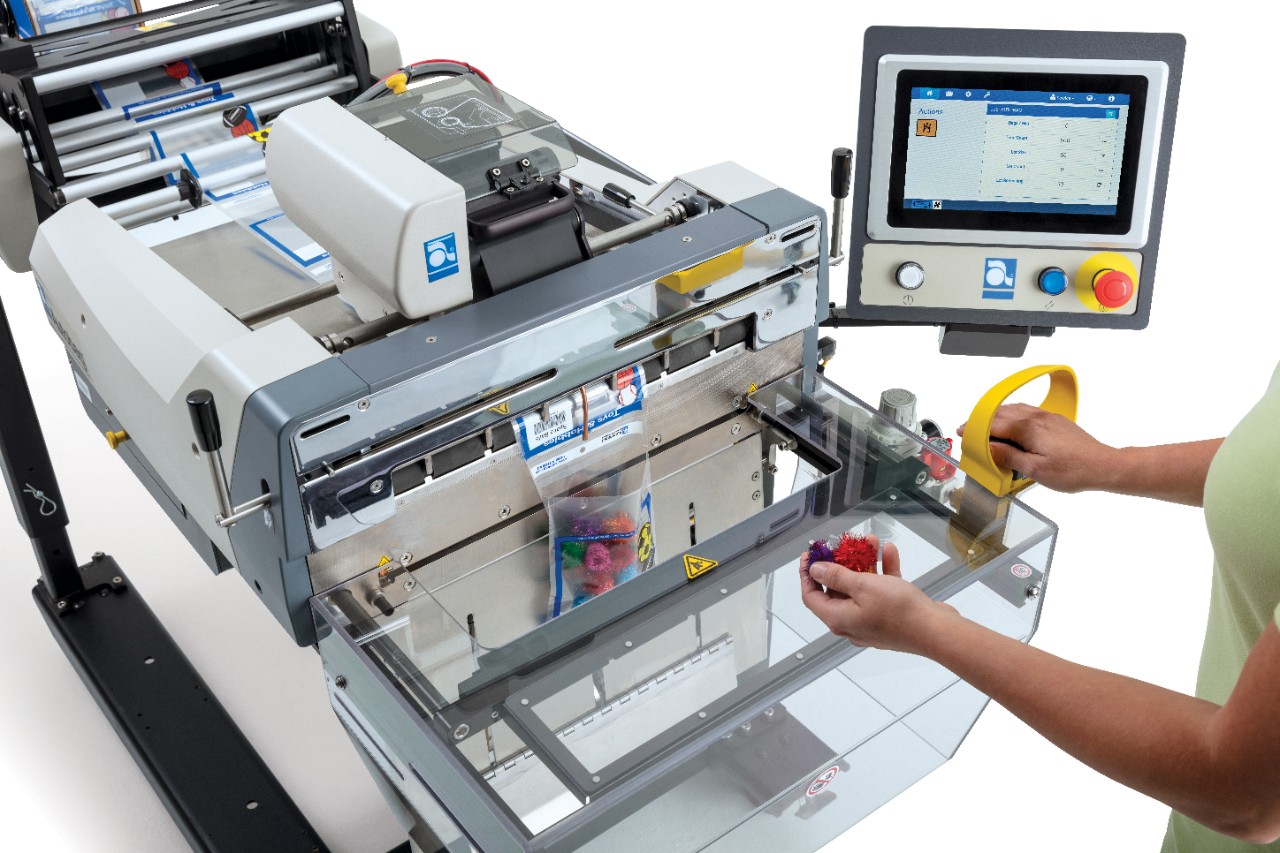

Inherently safe design provides maximum operator protection
Load direction configureable for left- or right- hand operation
Multi-position unwind with tension control simplifies changeover
Adjustable pass-through up to 150 mm for maximum flexibility and packaging efficiency
Advanced sealing technology and temperature control ensure consistent, high-quality seals
Fewer moving parts reduce ownership cost and improve reliability, while on-board diagnostics and modular components simplify maintenance
Networked to facilitate full pack station integration and central monitoring
AutoTouch™ Control Screen accesses, help system, on-board diagnostics and performance data

Specifications

This is a table

Weight:	277 kg
Electrical:	Universal Input: 110V to 240V VAC, 50/60 Hz
	Power Consumption: 750 Watts (VA) max
Air Feed:	5 CFM/80 psi of clean, dry air
Width:	874 mm
Height:	Load table: 837 mm
	Top of HMI: 1361 mm
Length:	1692 mm
Pass-Through:	150 mm
Bag Thickness:	35-100 µm
Bag Sizes:	W100 to 400 mm L 140 to 900 mm
