Comcount Accu-Scale Weigh counting scale

Comcount Accu-Scale weigh counting scale



The Accu-Scale is a simple, highly sensitive infeed system that accurately weigh-counts small parts. The equipment provides a complete, semi-automatic weigh count packaging operation.Utilising the very latest technology, the Comcount Accu-Scale is capable of detecting and counting small parts as light as 0.1g in weight.
Simply place a sample of the product to be counted into the weigh pan and the scale programs to count the product accurately. As more products are added, the new weight is instantly measured and the piece count is displayed. Once the desired amount is reached, a foot-pedal-operated weigh pan dispenses each batch into a pre-opened Autobag plastic bag.
A new target range feature enables even greater control of weigh counting accuracy by preventing cycling until the pre-set tolerances are reached. Simply set the upper and lower targets using the touch screen control and cycling will be enabled once the weigh-count value falls within the pre-set range. Using system matched Autobag pre-opened bags-on-a-roll, the Accu-Scale offers a fast and effective, semi-automatic, weigh count and bag packaging solution.

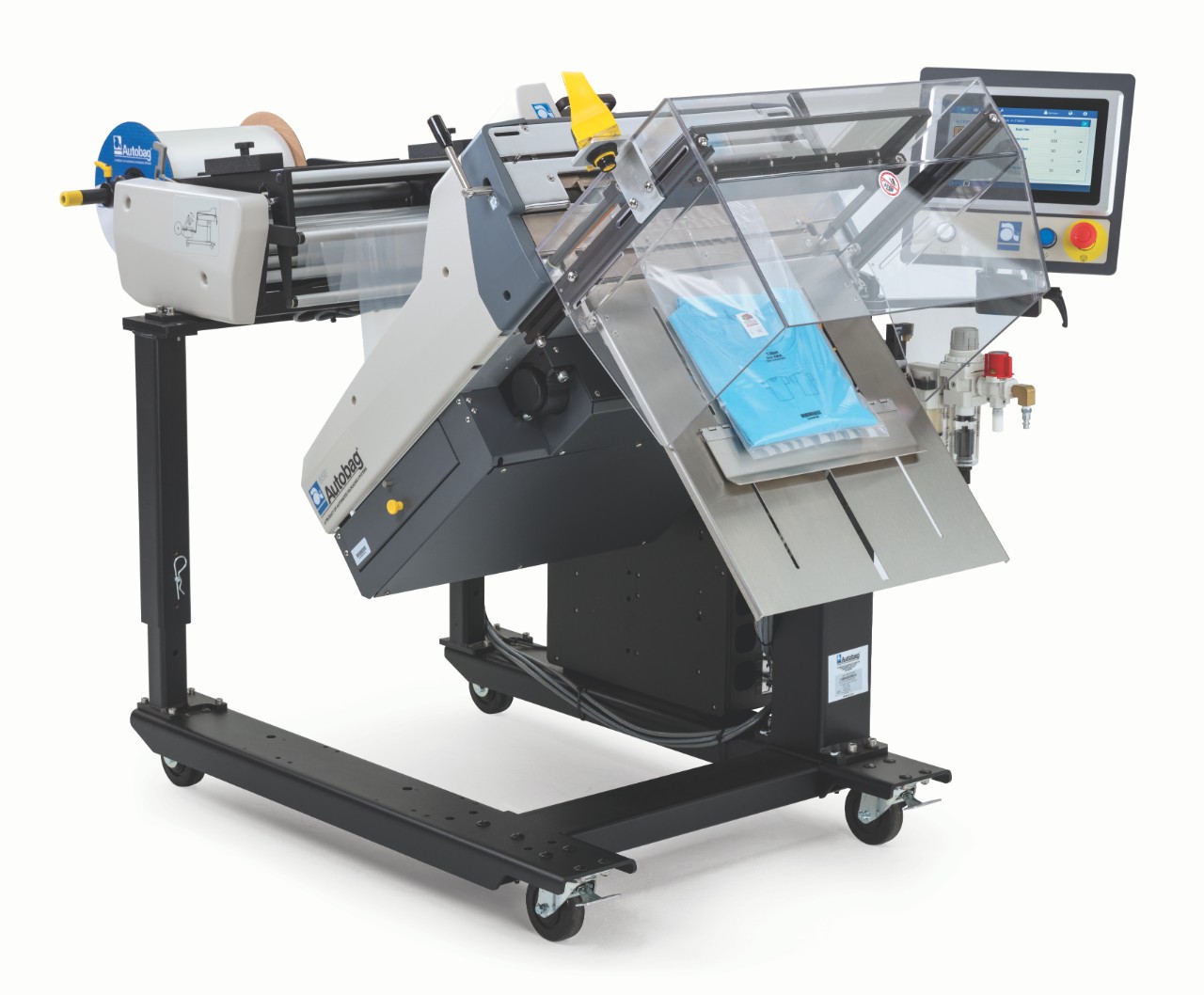

Integrates with Autobag bagging machines

Features and Benefits

  • Ideal for products that tangle or do not flow easily
  • Quick to set-up and easy to operate for short production runs
  • Able to count and weigh bulk product from 0.75g – 1.5kg in weight.
  • Large capacity version available as an option
  • Target range feature enables full control of weigh counting accuracy
  • Simple programming of scale using the touch screen allows rapid product changeovers
  • Ideal system for product flexibility - small, light-weight and heavier parts can be batched easily and efficiently
  • Multi-batch capability for large product applications that exceed the volume of the weighpan or maximum weight range for flexibility
  • Compact design to minimise floor space

Specifications

This is a table

Weight:

69 kg

Electrical:

110/220 VAC; 50/60 Hz

Air Supply:

0.5 CFM/ 80 psi of clean, dry air

Width:

910 mm

Height:

1220 mm

Depth:

810 mm

Weighing Capacity:

0.75 - 1.5 kg (optional)

Weighing Resolution:

0.1 - 0.2 g
